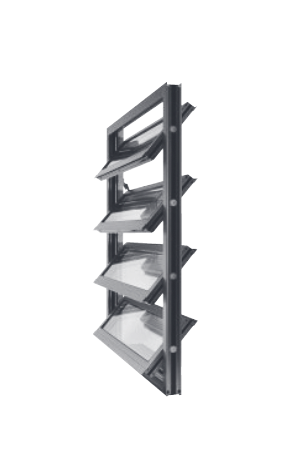

Louvred Window Ventilator is a double glazed thermally broken aluminium louvre window system. The Luxlame provides the benefits of a fully controlled ventilation system with the elimination of frame cold bridge effect. Suitable for a wide range of natural ventilation applications including winter gardens on apartment blocks.
DESCRIPTION
. Ideal for smoke and daily ventilation especially when thermal insulation, and good aesthetic appearance is required.
. The design of the LUXLAME blades match high quality requirements as:
– Aesthetic: matching with curtain walling and building facades.
– Completely watertight.
– Good thermal and acoustic insulation performance.
REGULATION
• LUXLAME is a NSHEV (Natural Smoke and Heat Exhaust Ventilator) which conforms to EN 12101-2. 12101-2 and NFS 61 937-1.
PROFILES
. Fix and opening frame are made from thermally broken extruded aluminium profile. Thickness of frames is 50 or 60 mm.
. Anodized, RAL lacquered.
PERFORMANCES
. Smoke ventilation: Cv from 0,5 to 0,59.
. Daily ventilation: Refer to regulation.
. Reliability: Re 1,000 and 10,000 (type B).
. Thermal insulation: Ug (depending on infill).
. Acoustic insulation.
